Antenna Tuner – 100 Watt – L-Network – balanced/unbalanced – SWRbridge

L-NETWORK MATCHBOXES

In theory, the L-Network is all you need to match any impedance. As I said, „in theory.“

In practice, in order to match a broad impedance range, you need some very large, and very small values of components. In addition, a large variable capacitor capable of matching on 160m is very expensive and would have too much minimum capacitance for use on 10m. As a result, a much smaller variable capacitor is used together with several fixed-value capacitors, switched in when required.

The problem does not stop there. All of the capacitors must be connected to one side of the coil for matching low impedances and connected to the other side of the coil for matching high impedances. As a result, some tricky switching is required if you want to match everything.

There are a handful of L-Network matchboxes on the market but most do not incorporate the complex switching circuit to enable it to match from 10 Ohms to 3000 Ohms. To my knowledge, currently the only L-Network on the market that can do this is the TEN-TEC Model 238, and its successors, the Model 238-A, the Model 238-B, which are only available used. The current Model 238-C is still available new, but it is not cheap.

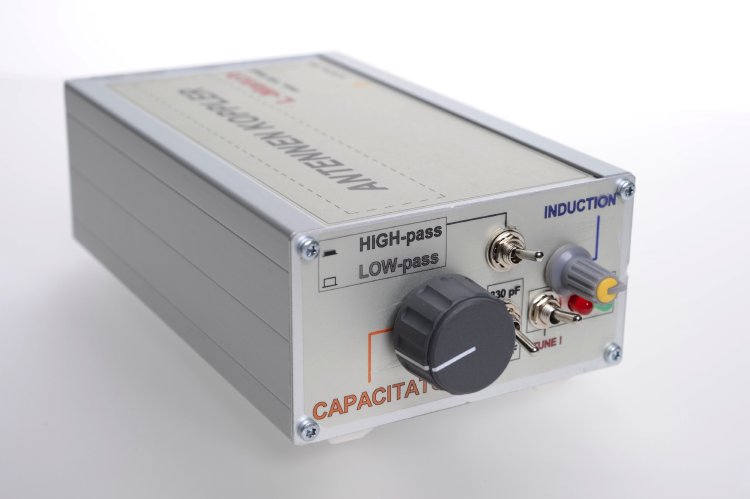

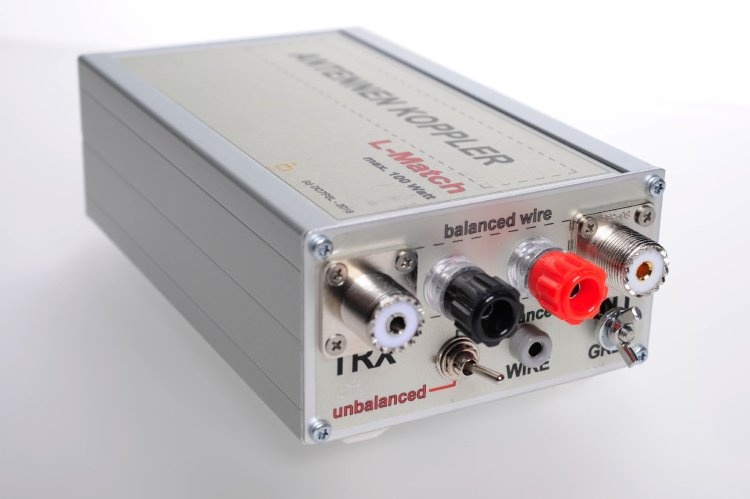

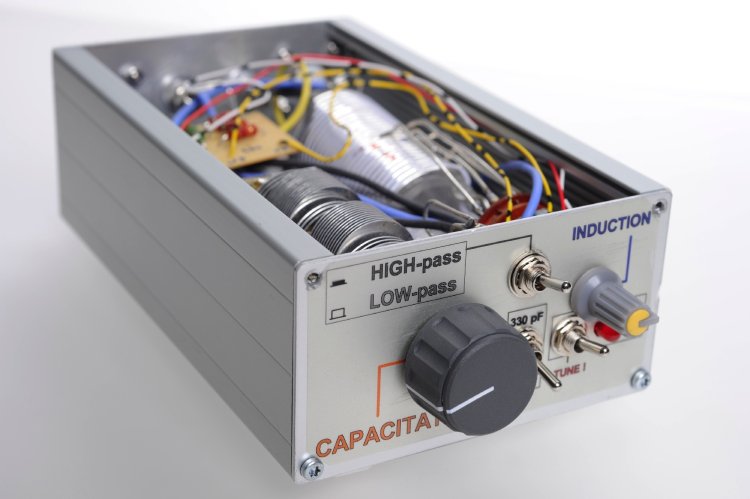

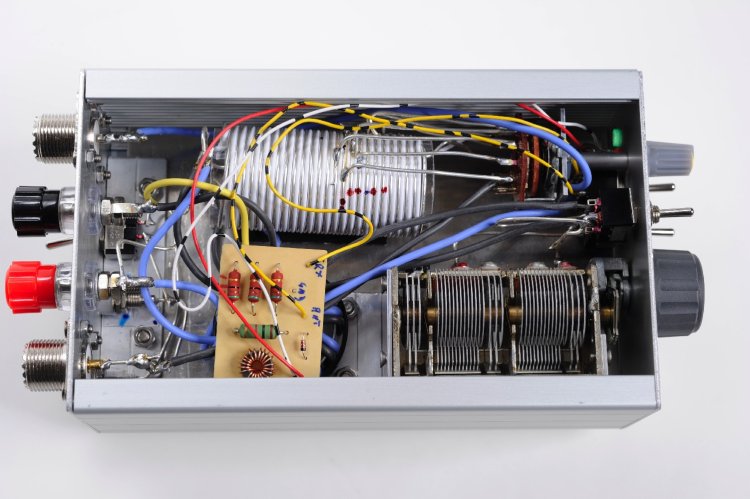

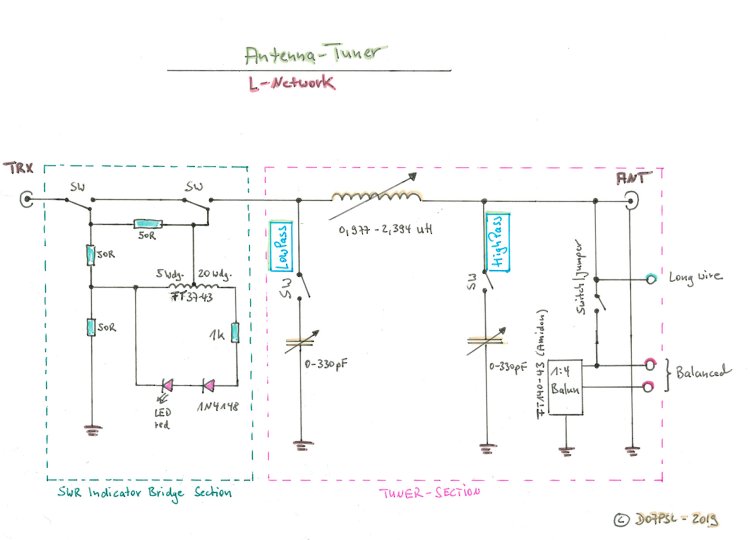

See my Homebrew Antenna Tuner with SWR-indicator-Bridge, switchable LowPass and HighPass

SWR-Bridge

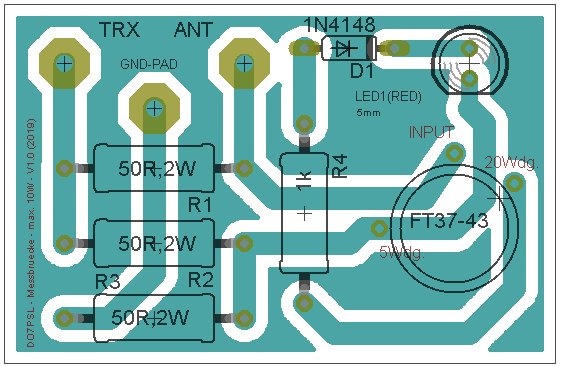

Here is the Layout of my SWR-indicator-Bridge (egale-Format).

This SWR-Bridge worked perfect with this build Antenna-Tuner. You can load this with about 10 Watts in the Tune-modus. But by carefull with the TRX-load ????

At a low swr the led goes off – at a high SWR the led lights up

Advantages of L-Network

Disadvantages of L-Network

Easy to tune to the optimum setting
Only one setting (per antenna, per band) will yield the optimum SWR
When set for minimum SWR, it always corresponds to maximum efficiency
Fewer components than with a T-Filter (less knobs to tune)
LESS LOSS THAN WITH T-FILTER !!! (BIGGEST ADVANTAGE)

To cover the same impedance matching range as the T-Filter, it requires some pretty extreme component values, AND. . .
It also requires re-configuration of the inductor and capacitor to all 4 circuits shown above.
In practical applications, achieving the extreme component values needed requires switching the capacitor back and forth between the input and output side of the network, switching multiple capacitors in parallel with the main tuning capacitor, and swapping the positions of the inductor and capacitor.
Without all of the above, its impedance matching range is limited, and not as broad as that of the T-Filter matchbox.
There are very few commercial (manual) L-Network tuners on the market and all of them are relatively expensive. Here are a couple:
- TEN-TEC Model 238/238A/238B/238C („C“ is the current model)
- Viking Nye Matchbox (only available on the used market)
